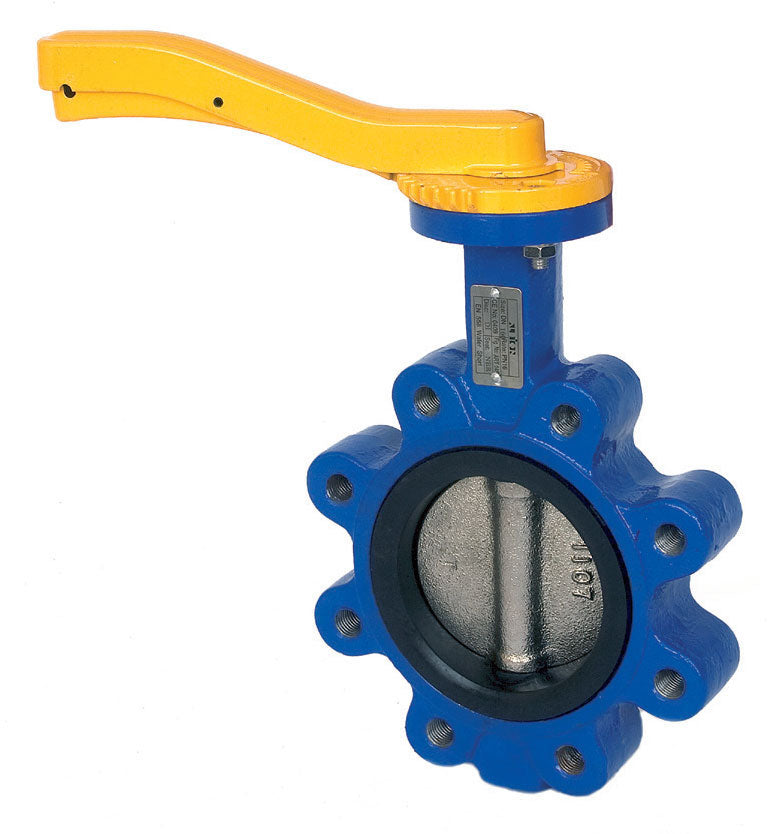

Albion 50-200mm Ductile Iron Lugged and Tapped Butterfly Valve - ART 145
The Albion ART 145 is a ductile iron-lugged and tapped butterfly valve with an NBR liner and a zinc-plated disc.
Manufactured to BS EN 593 standard, the Albion ART 145 Ductile Iron Butterfly Valve PN16 is constructed from grade GGG40 Ductile Iron, with a Stainless Steel upper and lower shaft.
It is available in sizes from DN50 to DN200 and is rated to 16 bar (232 psi). The CE-approved, low-maintenance ART 145 is designed for use in water distribution/water treatment applications. Featuring 8 lugs, it provides a tight shut-off thanks to its NBR liner and Di Zinc plated disk.
Use of a gearbox is recommended with the ART 145, this is due to its high torque requirement. Maximum pressure of 16 bar, and with a working temperature of between 0°C to +90°C.
Summary
- Operating temperature range: -10°C to +90°C
- Maximum operating pressure: 16 bar (232 psi)
- Weight: 10 kg to 150 kg (22 lb to 330 lb)
- Actuator options: manual, gear motor, electric
- Flange Mounting PN16 Only
- BS5155 (BS EN 593)
- ISO 5211 Direct Mount
- Lockable Handle
- Epoxy Coat Finish
Specifications
| Connection: |
PN16 |
| Body: |
Ductile Iron GGG40 |
| Seat: |
NBR |
| O-Ring: |
EPDM |
| Max Pressure: |
16 Bar |
| Working Temperature: |
0°C to +90°C |
