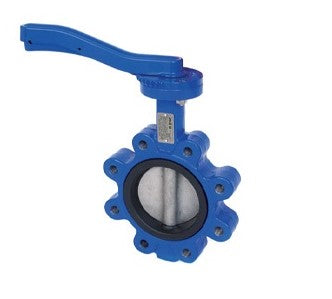

Albion 50-200mm Ductile Iron PN16 Fully Lugged Butterfly Valve - ART 135
The ART 135 by Albion Valves is manufactured from grade GGG40 Ductile Iron, a stainless steel 316 disc, and a WRAS EPDM seat. This fully lugged valve brings you peace of mind, knowing that it will outperform under the toughest conditions.
The Albion ART 135 by Albion Valves is a lugged ductile iron butterfly valve that is flange mounted and has a PN16 rating. This fully lugged valve brings you peace of mind, knowing that it will outperform under the toughest conditions, made from GGG40 ductile iron, has a stainless steel 316 disc, and has a WRAS EPDM seat.
The valve is available in sizes from DN50 to DN200 and has a maximum working temperature of -20°C to +110°C. A WRAS Approval makes this butterfly valve ideal for use with drinking water.
Summary:
- Flange Mounting PN16 Only
- BS5155 (BS EN 593)
- ISO 5211 Direct Mount
- Lockable Handle
- Epoxy Coat Finish
- WRAS approved product
Specifications
Body: |
Ductile Iron GGG40 |
Connections: |
Fully Lugged PN16 |
Disc: |
Stainless Steel 316 (CF8M) |
Seat: |
WRAS EPDM |
Upper Shaft: |
Stainless Steel 420 |
Lower Shaft: |
Stainless Steel 420 |
Bushing: |
PTFE |
Cotter Pin: |
Spring Steel 65Mn |
Circlip Spring: |
Steel 65Mn |
O-Ring: |
WRAS EPDM |
Ring: |
Nylon 6 PA6 |
Handle: |
DN50-150 Aluminium, DN200 DI |
Bolt: |
Stainless Steel 304 |
Max Pressure: |
16 bar |
Weight: |
2.60 to 18.08 kg (depending on size) |
Torque: |
19 to 194 Nm (depending on size) |
Flow rate: |
118 to 3842 Kv (depending on size) |
Noise level: |
62 to 92 dB (depending on size) |
Working Temperature: |
0°C to +110°C |
