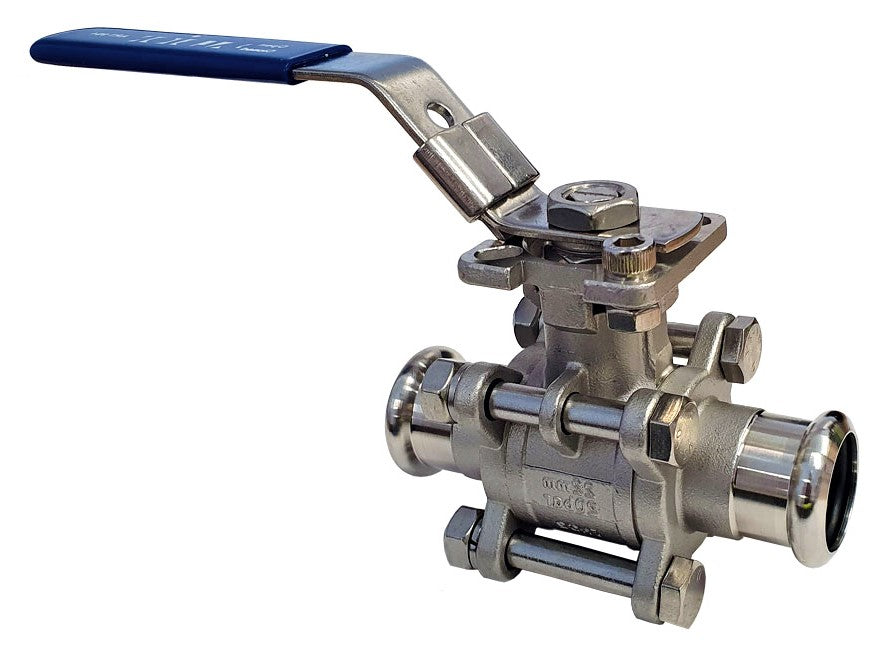

Albion 15 - 54mm Stainless Steel Press End 3 Piece Ball Valve ART 994
Compromising of a 3 piece Stainless Steel body, this full bore ball valve swings open to provide easy access and operation when carrying out repairs or maintenance. This stainless steel press end ball valve comes in various sizes from 15 to 54mm, has a working temperature range of between -20°C and +120°C, and a max pressure of between 10 and 24 bars (Please see data sheet).
Summary:
- Dedicated M Profile
- Full Bore
- Locking Device
- ISO5211 Direct Mount
Specifications
Body
CF8M Stainless Steel
Cap
CF8M Stainless Steel
Ball
Stainless Steel 316
Seat
R-PTFE (15%)
Stem
Stainless Steel 316
Thrust Washer
PTFE
Bushing
Stainless Steel 304
Stem Nut
Stainless Steel 306
Bolt
Stainless Steel 304
Handle
Stainless Steel 304
Lock Device
Stainless Steel 304
Spring Washer
Stainless Steel 304
Max Pressure
- 10 Bar (76mm - 108mm)
- 17 Bar (35mm - 54mm)
- 22 Bar (22mm & 28mm)
- 24 Bar (15mm)
Working Temperature
-20°C to +120°C
