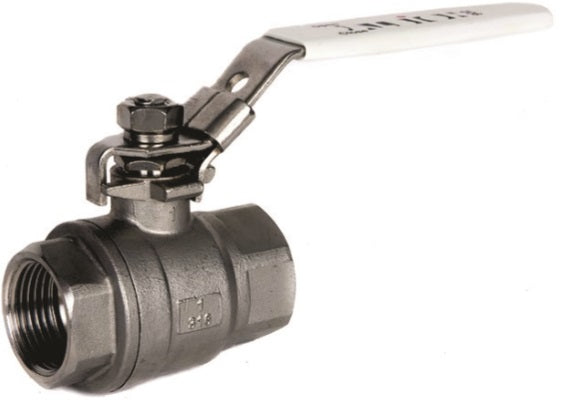

Albion 1/4 - 3" Stainless Steel 2 Piece Ball Valve ART 902
The ART 902 ball valve with locking lever is a compact, spindle design, surface mount ball valve available in a range of full bore sizes from ¼” to 3”. This 2 Piece Ball Valve's range is made entirely of stainless steel, except for the PTFE seals, which offer excellent resistance to aggressive fluids. The body is milled from solid bar stock stainless steel.
Summary:
- PTFE Seals
- Full Bore
- Screwed BSP Taper
- Working temperature: -25°C to +200°C
- Locking lever device
- RPTFE (15%) seats
Specifications:
Connection
BSP Threaded Female/Female
Main Body
CF8M Stainless Steel
Seat
RPTFE (15%)
Ball
Stainless Steel 316
Stem
Stainless Steel 316
Gland Nut
Stainless Steel 304
Lock Device
Stainless Steel 304
Max Pressure
82 Bar (1/4”-1”)
69 Bar (1 1/4”-1 1/2”)
62 Bar (2”-3”)
Working Temperature
-25°C to +200°C
