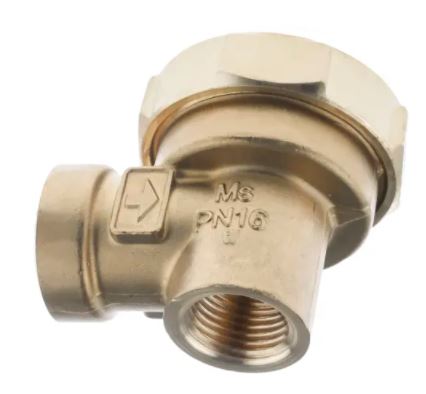

Spirax Sarco ½” Brass BSP Steam Trap Valve BPT13S
Combining efficiently with reliability, the Spirax Sarco ½” Brass Balanced Pressure Thermostatic Steam Trap valve is constructed from robust Brass BS 2872 CZ 122. It has a ½” BSP Female connection end an a maximum pressure rating of 16 bars.
Summary:
- ½” BSP Female connection
- Balanced pressure thermostatic steam trap
- 16 bar pressure rating
- Brass body
Specifications:
Body
Brass BS 2872 CZ 122
Cap
Brass BS 2872 CZ 122
'O' Ring
Synthetic rubber high fluorine fluorocarbon
Capsule
Stainless Steel
Spring
Stainless Steel BS 2056 302 S26
Spacer Plate
Stainless steel BS 1449 304 S16
Seat
Stainless steel BS 970 431 S29
Seat Gasket
Stainless Steel BS 1449 304 S11
Union Nut and Tailpiece
Brass VS 2872 CZ 122
