Resilient seat gate valve EPDM - (DN50 - DN150) PN16 - WRAS approved
- WRAS approved
- PN16 pressure rated
- EPDM seals fitted
Resilient seat gate valve EPDM - (DN50 - DN150) PN16 - WRAS approved
£140.44(Inc. VAT)
£117.03(Exc. VAT)
Frequently bought together
Handwheels for WRAS resilient seat gate valves (DN50-DN150)
DN50· matches your size
£13.76(Inc. VAT)
£11.47(Exc. VAT)
Pickup available at Trade Counter - Treforest Industrial Estate
Usually ready in 4 hours
Description

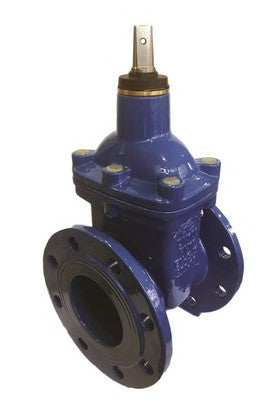

Resilient seat gate valve EPDM
(DN50 - DN150) PN16 - WRAS approved
A fully Water Regulations Advisory Scheme (WRAS) approved gate valve with a superior coating for use with water pipelines.
A resilient seated gate valve has a plain valve bottom allowing free passage for sand and pebbles in the valve. If impurities pass as the valve closes, the rubber surface will close around the impurities while the valve is closed. Resilient seat gate valves are available in a variety of sizes, they are typically operated using a handwheel, but can also be motorised or automated.
This ductile iron gate valve comes with EPDM vulcanised wedge and is approved to international standards for water applications. The valve is coated with epoxy coating to 250 microns in thickness.
Summary:
- Anti-corrosion coating
- Clockwise and anti-clockwise closing
- Fitted with cap top as standard
- Stainless steel 316 bolts and nuts
- Low maintenance gate valve for long-term cost-saving benefits
- Maximum working pressure: 16 bar/PN16
- Maximum Temperature: +70°C
- Complies to EN 1074-1&2, EN1171
- O-ring stem seals are replaceable under pressure
- EN1092-2 PN10 & PN16
- Face-to-face in accordance with DIN 3202-1 F4 (EN 558-1 Series 14)
- WRAS approved product
Applications:
- Potable water pipelines
- Water and wastewater treatment
- Irrigation
- Chemical processing
- Oil and gas
- Marine
