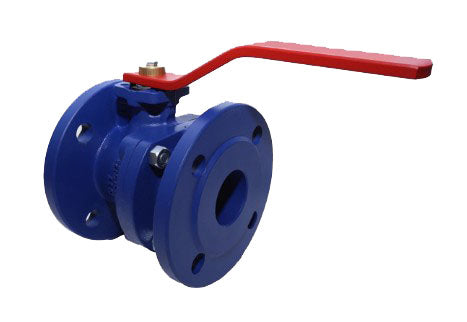

Albion 50 - 150mm Ductile Iron Flanged PN16 Ball Valve ART 279
Using a rotating ball, this Ductile Iron Flanged Ball Valve works by controlling the speed and flow of various liquids and gasses. Commonly used within industrial and HVAC applications, this lever operated ball valve is suited for use with a PN6 Flange.
It’s body is made from tough ductile iron, with a temperature rating of -10°C to 100°C, and pressure rating of 16 bars.
Summary:
- Flange Mounting PN16 only
- ISO 5211 Direct Mount
- Inside and outside epoxy coating
- Optional lockable Lever
- Blow Out Proof Stem
- Chrome Plated Brass Ball
Specifications:
Main Body
Ductile Iron
Flange
Ductile Iron
Ball
Brass/Chrome Plated
Ball Seat
PTFE
Stem
Brass
O-Ring
Viton
Lever
Carbon Steel
Max Pressure
16 Bar
Working Temperature
-10°C to +150°C
