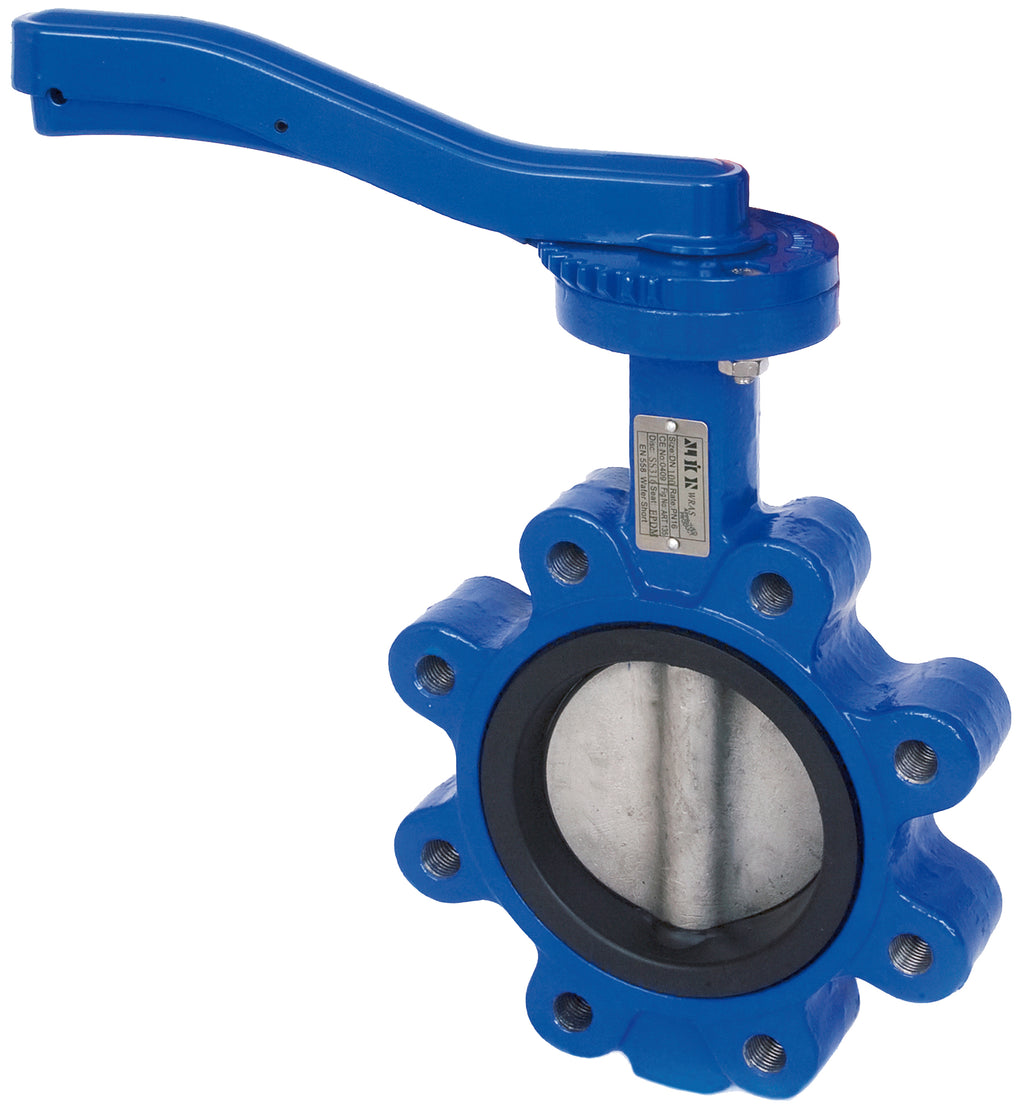

The Albion ART 135 PN25 Ductile Iron Lugged Butterfly Valve is a fully lugged valve manufactured from grade GGG40 Ductile Iron. It is a flange mounting valve with a pressure rating of PN25, making it ideal for use in a variety of applications where a high degree of water-tightness is required.
The valve features a lockable handle for added security, and an epoxy coat finish for corrosion resistance. It is also WRAS-approved, making it suitable for use with drinking water.
The Albion ART 135 PN25 Ductile Iron Lugged Butterfly Valve is a versatile and reliable valve that is ideal for a wide range of applications. It is a good choice for water, wastewater, and other industrial applications where a high degree of water-tightness and corrosion resistance is required.
Summary
- Fully lugged construction for added strength and durability
- PN25 pressure rating for high-pressure applications
- WRAS approved for use with drinking water
- Lockable handle for added security
- Epoxy coat finish for corrosion resistance
- BS5155 (BS EN 593)
- ISO 5211 Direct Mount
- Vulcanised liner
Specifications
| Connections: |
Lugged & Tapped PN25 |
| Body: |
Ductile Iron GGG40 |
| Disc: |
Stainless Steel |
| Bushing: |
PTFE |
| Max Pressure: |
25 bar |
| Working Temperature: |
-10°C to +110°C |
