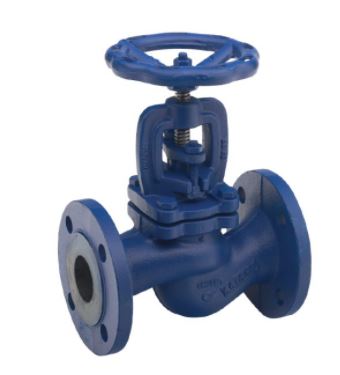

Cast Iron Globe Valve PN16 LV 5200
Perfect for hot & cold water, steam, air and oil pipelines, this cast iron globe valve is highly suitable for industrial, HVAC and marine applications. Handwheel operated to provide a leak tight shut off for complete isolation or opened partially for flow regulation, the flanged PN16 globe valve is maintenance free with a bolted body and compliant to BS4504.
Summary:
- Flanged PN16
- Cast Iron Body & Bonnet
- Stainless Steel Disc, Stem & Seat
- Graphite Packing
- Temperature -10°C to 300°C
Usage:
- Steam
- Gas
- Liquid
- Condensate
- Water Systems
Specifications:
PN Rating (Pressure Nominal): PN16
Material:Cast Iron
Disc:X20Cr13
Bonnet:Stainless Steel
Lock Nut: Zinc Galvanised 8 Steel
Stem: X20Cr13
Handwheel: EN GJS 500-7 Cast Iron
Gland Packing: Graphite Packing.
Working Temperature: -10°C to 300°C
