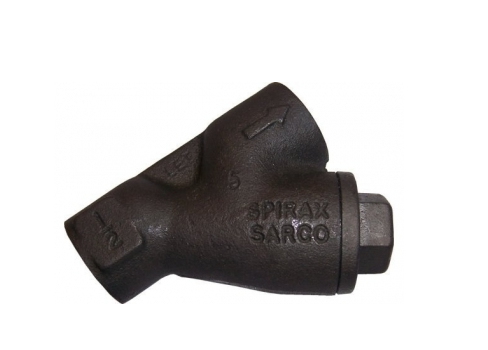

Spirax Sarco ½ - 2" Cast Iron Y Type Strainer Valve Fig 12
Spirax Sarcos Fig 12 Cast Iron Y Type Strainer Valve efficiently allows removal of debris such as dirt or scale from pipeline, reducing problems caused by foreign matter. Manufactured from DIN 1693 GGG 40 SG Iron, with a pressure rating of 16 bars and a working temperature between - 0°C to +300°C.
Strainers need to be installed in close proximity to where drain plugs can be removed, this is to allow the screen to collect material at the lowest possible point.
Summary:
- European Pressure Equipment Directive 97/23/EC Compliant
- DIN 1693 GGG 40 Body
- Stainless Steel 316L Strainer Screen
- Pressure rating - 16 bars
- Working temperature - 0°C to +300°C
Body
SG iron DIN 1693 GGG 40
Cap
SG Iron DIN 1693 GG 25
Cap gasket
Reinforced exfoliated graphite
Strainer Screen
Stainless steel 316L
Bolt
Carbon steel BS 3692 Gr. 8.8
Washer
Carbon Steel BS 4320 TI Form A
Pressure Rating
16 Bar
Working Temperature
0°C to +300°C
