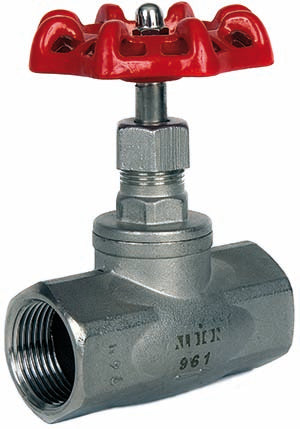

Stainless Steel Globe Valve - ART 961
This stainless steel globe valve is perfect for pipelines pumping aggressive and corrosive liquids, but is also suited to air, gas, water and oil pipelines too. Handwheel operated for complete isolation or partially for regulating flow, the PN16 globe valve has screwed BSP parallel ends, PTFE seals with a metal seat and non- rising stem.
Summary:
- Screwed BSP Parallel
- PTFE Seals
- Metal Seat
- PN16 Rated
Globe Valve Usage:
Specifications:
PN Rating (Pressure Nominale): PN16
Material: Stainless Steel
Stem: Stainless Steel 316
Gland Packing: Stainless Steel 304
Stem Material: PTFE
Handwheel Material: Aluminium Alloy
Wheel Nut Material: Stainless Steel 304
Max Pressure: 16 Bar
Working Temperature: -25°C to +200°C
