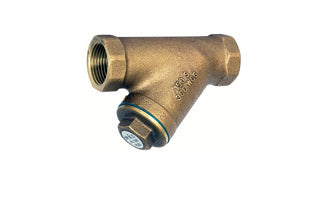

Albion ½ - 2" Bronze Y Type PN20 Strainer Valve - ART 368
WRAS approved for use with public water, this Bronze Y Type PN20 Strainer Valve is available in sizes between ½ and 2". Constructed from ASTM B62 C83600 Bronze, the ART 368 can be installed in both vertical and horizontal installation. It’s 304 stainless steel screen filters unwanted debris from pipeline, avoiding damage.
Summary:
- Available in Screwed BSP Taper (ISO 7/1) or NPT (ANSI B1.20.1)
- WRAS Approved
- ASTM B62 C83600 Bronze Body
- Maximum pressure rating: 20 bars
- Temperature rated from -10°C to +232°C
Body
Bronze - ASTM B62 C83600
Screen
Stainless Steel - 304
Gasket
Aramid Fibres with Binders
Cap
Bronze - ASTM B62 C83600
Pressure Rating
20 Bar
Working Temperature
-10°C to +232°C
