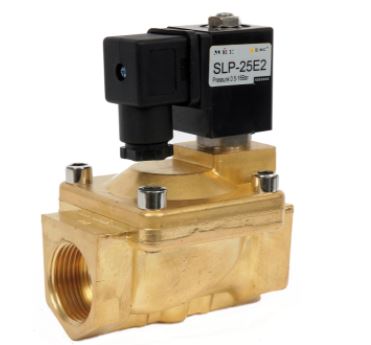

Albion Brass Solenoid Normally Closed EPDM 24V ac/dc & 110V ac & 230V ac
The Albion 24V ac/dc Brass Solenoid Valve is a pilot operated two way normally closed valve. Working from 24V ac/dc or 110/115/120/230V ac, the solenoid is designed for use in applications where it is desired to open and close the fluid's path within a control system. The Albion Brass Solenoid Valve is designed to be used with liquids, air or gases up to 120°C and is perfect for applications where complete draining is required within tanks and vessels.
Summary:
- Brass Solenoid Valve
- Pilot Operated 2/2 way
- Normally Close
- EPDM Diaphragm
- Voltage 24V ac/dc, 110V ac, 230V ac & 12Vdc
- Coil Rating IP 65
- Coil Duty Cycle- 100%
Usage:
- Chemical Processing
- Water/Sewage treatment
- Sterilizers
Specifications:
Material
Diaphragm
NBR/EPDM/Viton
Diaphragm Spring
Stainless Steel 304
Valve Cover
Brass/Stainless Steel 316
Bolt
Stainless Steel 302
Pilot Seal
NBR/EPDM/Viton
Pilot
Stainless Steel 1J117
Pilot Spring
Stainless Steel 1J117
O-ring
NBR/EPDM/Viton
Plunger Tube Unit
Stainless Steel 3041J117
Coil
Enamelled Wire
Plug
Nylon
Washer
Stainless Steel 302
Lock Nut
Stainless Steel 302
