Bronze Glove Valve - ART 350

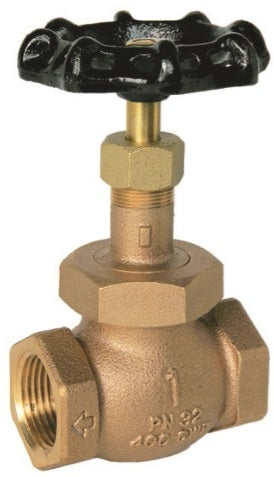

The Albion Bronze Globe Valve is a handwheel-operated valve. It has a PTFE disc seal and is rated for a pressure of PN32. This globe valve is available in a variety of sizes, from 1/2" to 2". It is CE-approved and meets the standards of BS 5145 (BS EN12288).
Ideally suited for isolation duties, providing a leak tight shut off with the capability for being partially opened for flow regulation, the Bronze PN32 Globe Valve is suitable for many applications including steam and seawater.
Made of bronze for corrosion resistance, PTFE disc seal for long life and durability, available in a variety of sizes. Handwheel operated for easy operation.
Summary:
- ART350 Bronze Globe Valve with renewable PTFE Seat.
- Screwed BSP Parallel
- Union Bonnet
- Rising Stem
- PTFE Seals
- Metal Seal
- PN32 Rated
- BS 5154 Approved
- CE Approved
Usage:
- Steam
- Condensate
- Water
- Oil
- Compressed Air
- Fluids Compatible with the construction
Specifications:
| PN Rating (Pressure Nominale): |
PN32 |
| Material: |
Bronze |
| Disc: |
Brass (1/2" - 1") C27450 |
| Bonnet: |
Cast Bronze (1.1/4" - 2") ASTM B62 C83600 |
| Lock Nut: |
Brass - C27450 |
| Stem: |
Brass - C27450 |
| Gland: |
Brass - ASTM B16 C36000 |
| Packing Nut: |
Brass - ASTM B16 C36000 |
| Stem Material: |
Brass - C27450 |
| Handwheel Material: |
Cast Iron - ASTM A126 Class B |
| Wheel Nut Material: |
Steel - ASTM A563 Zn Plated |
| Max Pressure: |
32 Bar |
| Working Temperature: |
-10°C to +200°C |
