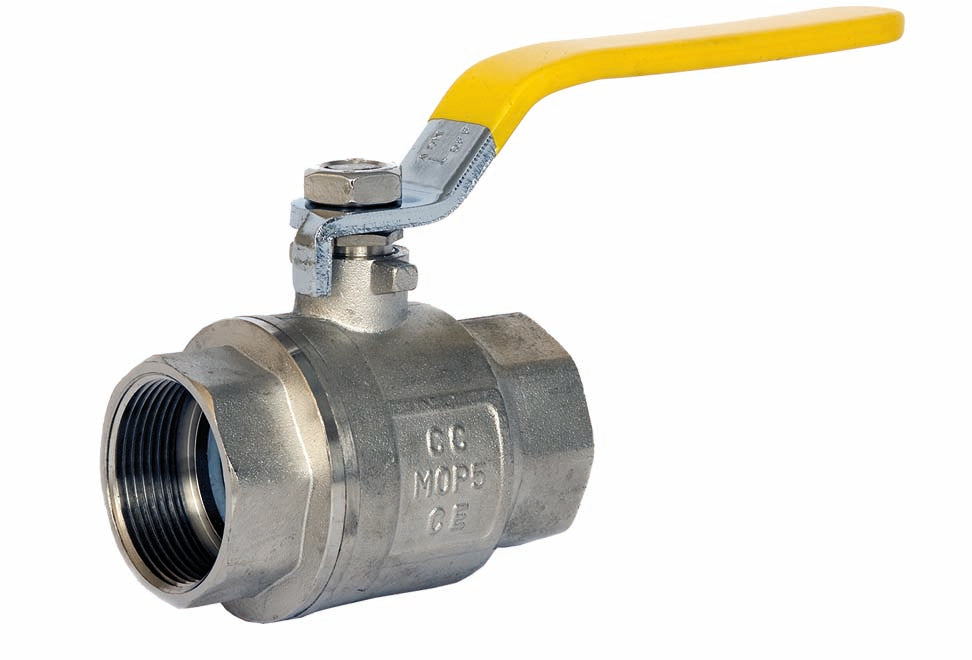

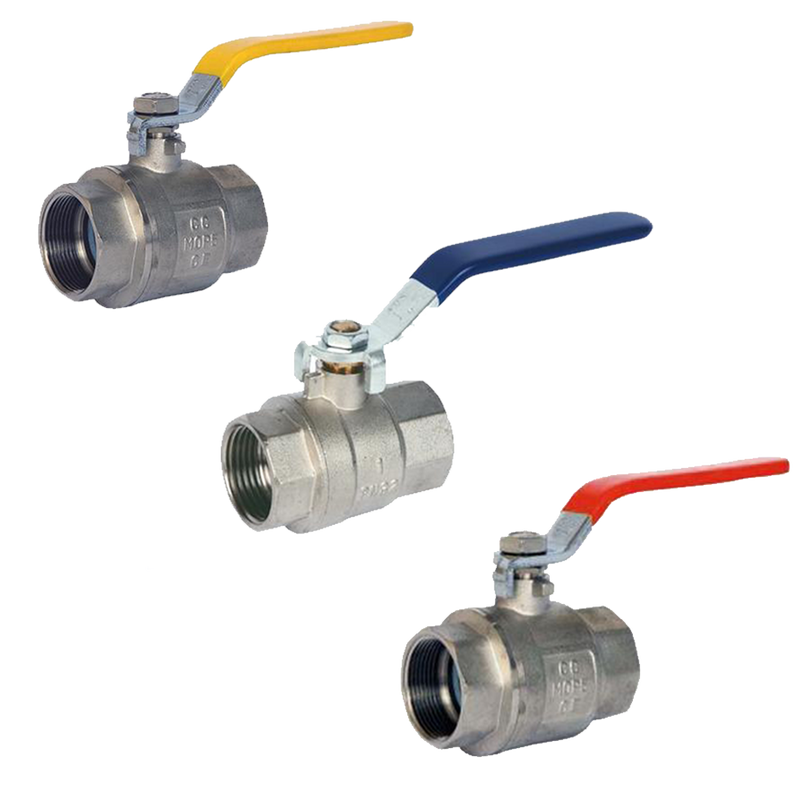

Albion Brass BSP Ball Valve ART 40P

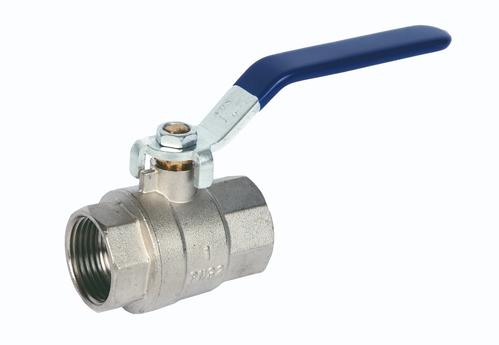

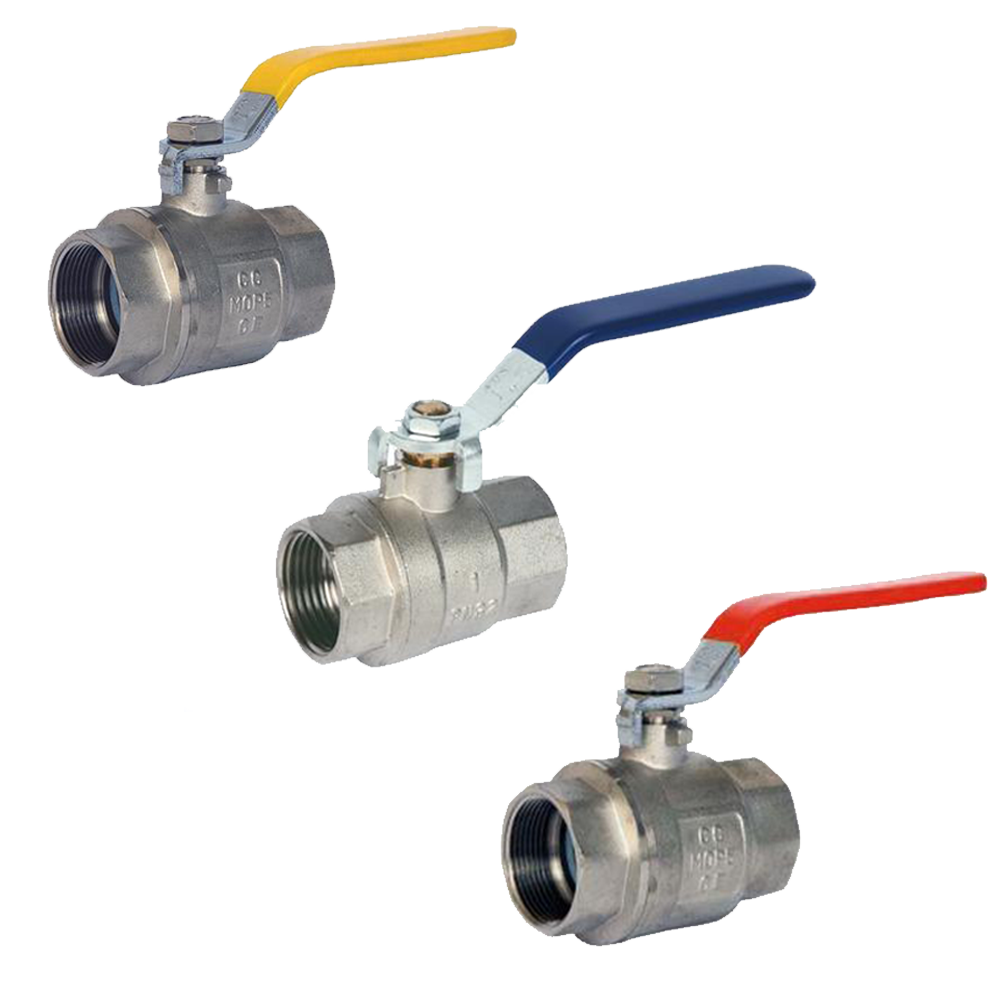

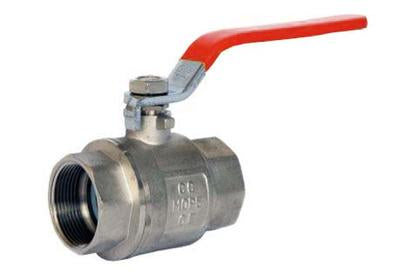

The Albion Brass BSP Ball Valve ART 40P is used in a wide range of plumbing and central heating applications. Available in a range of sizes up to 4” and with a choice of yellow, blue and red handle.
This heavy duty ball valve has an operating pressure of up to 16 bar and features a flexible, integral seat ring for reduced risk of leakage. The Albion Brass Ball Valve features an Anti-Blow-Out stem and is fully WRAS and EN331 approved.
Summary:
- Anti-Blow-Out Stem
- Full Bore
- Max pressure: 40 Bar
- Working temperature: -20°C to +130°C
- PTFE Seats & Seals
- EN331 & WRAS Approved
Specifications:
Main Body
Brass/Nickel Plated
Seat
PTFE
Ball
Brass/Chrome Plated
Stem
Brass
O-Ring
NBR
Lock Nut
Brass
Lockable Lever
Steel/PVC Plastic Coated
Max Pressure
40 bar
Working Temperature
-20°C to +130°C
