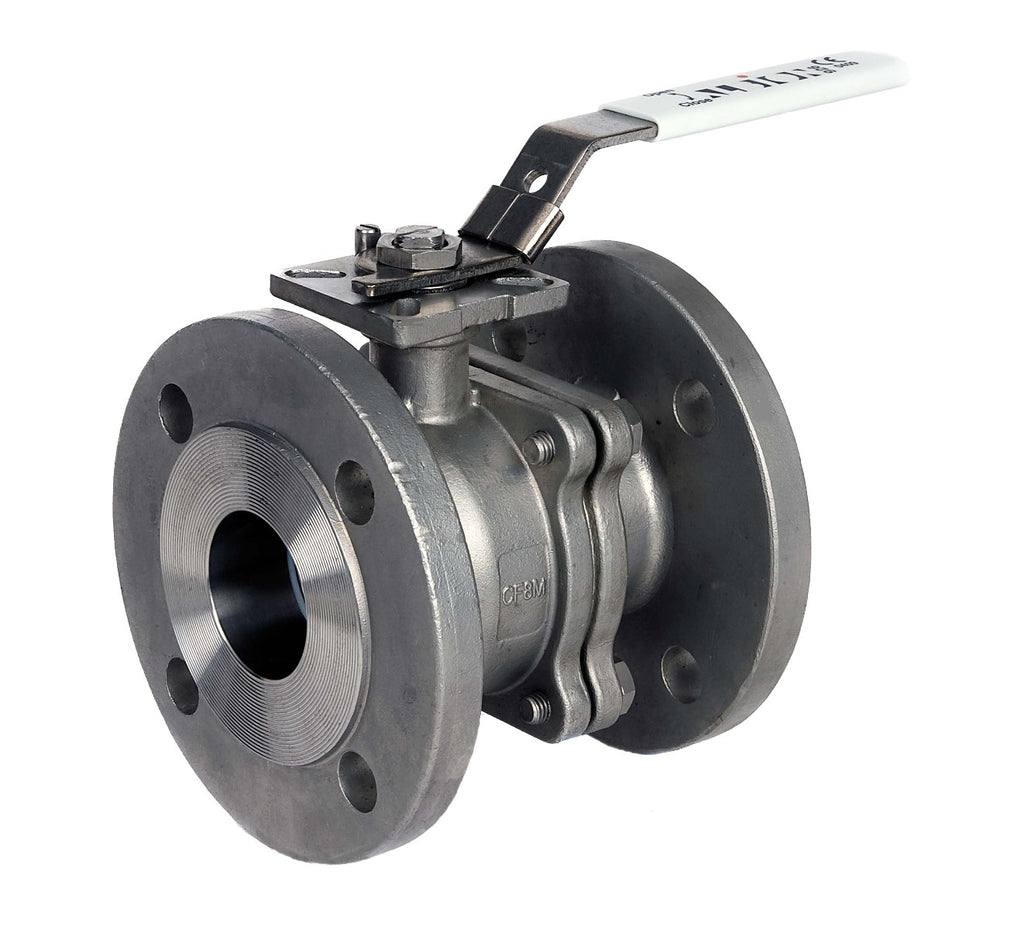

Albion 1/2" - 6" Stainless Steel Ball Valve Flanged PN16.
Designed for demanding applications in hazardous areas, this high-performance ball valve offers exceptional safety, durability, and reliability.
Key Features:
-
ATEX Approved: Safe for use in hazardous environments.
-
Fire Safe Design: Ensures continued operation during a fire.
-
Heavy Duty Construction: Built with CF8M stainless steel for maximum strength and corrosion resistance.
-
Full Bore Design: Provides unobstructed flow for maximum capacity.
-
Lockable Lever: Easy operation with a 90-degree turn.
-
ISO 5211 Mounting Pad: Compatible with various actuators.
-
PTFE/Viton Stem Seals: Provide excellent sealing and low friction.
-
Wide Temperature Range: Operates from -25°C to +200°C.
Specifications:
-
Pressure Rating: PN16 (2.5" - 4"), PN40 (1/2" - 2")
-
Body Material: CF8M stainless steel
-
Seat Material: RPTFE (15%)
-
Ball Material: Stainless steel 316
-
Stem Material: Stainless steel 316
-
O-Ring Material: Viton
-
Lock Nut Material: Stainless steel 304
Ideal for:
- Isolation and control applications in hazardous areas
- Oil and gas industries
- Chemical processing plants
- Petrochemical refineries
