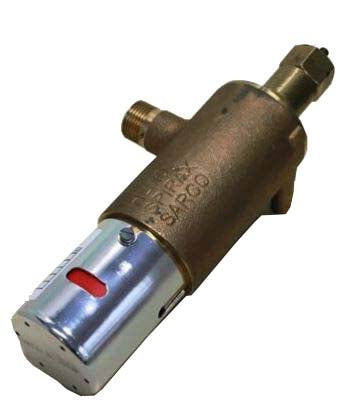

Spirax Sarco HL10 Safeguard High-Limit Cut-out Control
The Spirax Sarco HL10 is a high-limit cut-out (HLCO) unit that is used to protect heating and cooling systems from overheating. It is a direct-acting device that is activated by a temperature sensor. When the temperature at the sensor reaches the preset limit, the HLCO will cause a control valve to close, shutting off the flow of fluid to the system. This prevents the system from overheating and causing damage.
The Spirax Sarco HL10 High Limit Control System is a high-limit cut-out unit for use with a Type 130 Control System. The high-limit cut-out unit incorporates a socket which has been designed specifically to accept the capillary tube from the limiter/cut-out sensor.
Manufactured from top-quality cast iron and is ideal for use as part of an over-temperature control system on hot water storage systems. The HL10 is a simple and reliable device that is easy to install and maintain. It is made of durable materials and is completely sealed, so it is not affected by moisture or corrosion. The HL10 is available in a variety of sizes and temperature ranges to meet the needs of different applications.
The Spirax Sarco safeguard high limit control system is supplied set to cut out at approximately 60°C and is designed to protect plant from overheating. Note: the settings can easily be altered to initiate cut-out at anywhere between 0°C and 100°C.
Key features of the Spirax Sarco HL10:
- Temperature sensor with adjustable limit
- Control valve actuator
- Completely sealed construction
- Durable materials
- Wide range of sizes and temperature ranges
- Settings can easily be altered to initiate cut-out at anywhere between 0°C and 100°C
- For correct installation, it is essential to use a sensor pocket
- Pockets are available in copper or stainless steel having 3/4" BSP (BS 21 taper) or API thread
Applications
- Boilers
- Chillers
- Air conditioners
- Process heating and cooling systems
- Hot water tanks
- Steam generators
- Food processing
- Pharmaceutical manufacturing
- Chemical processing
- Power generation
Specifications:
| Body: |
Bronze |
| Bonnet: |
Brass |
| Piston: |
Stainless Steel |
| Main Spring: |
Stainless Steel |
| Ball: |
Stainless Steel |
| Valve Coupling Nut: |
Brass |
| Capillary Tube: |
PVC-covered copper |
