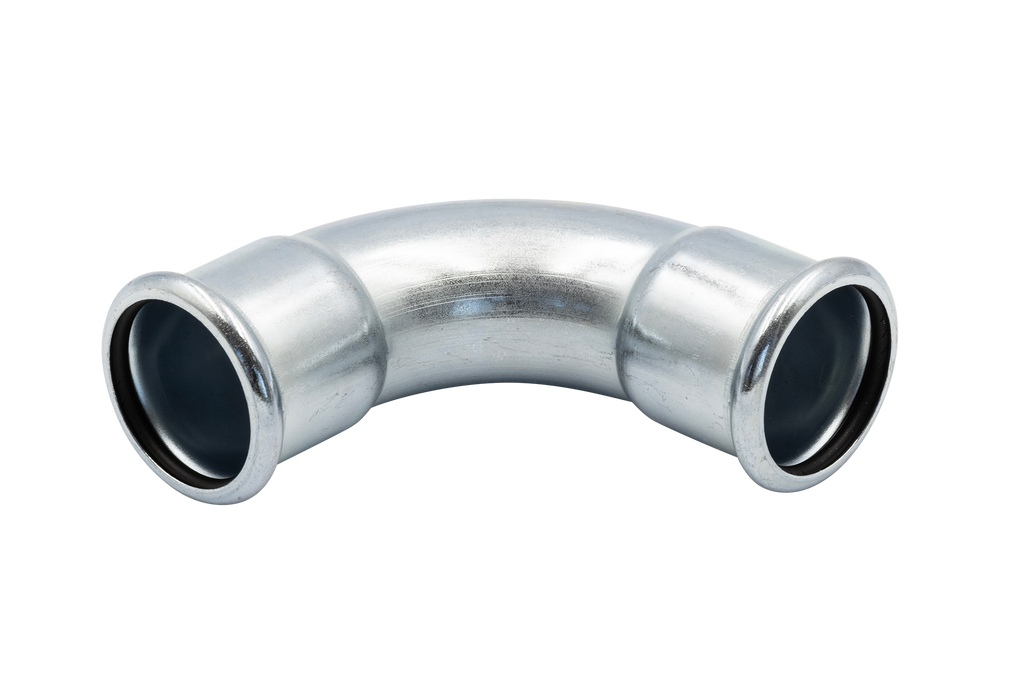

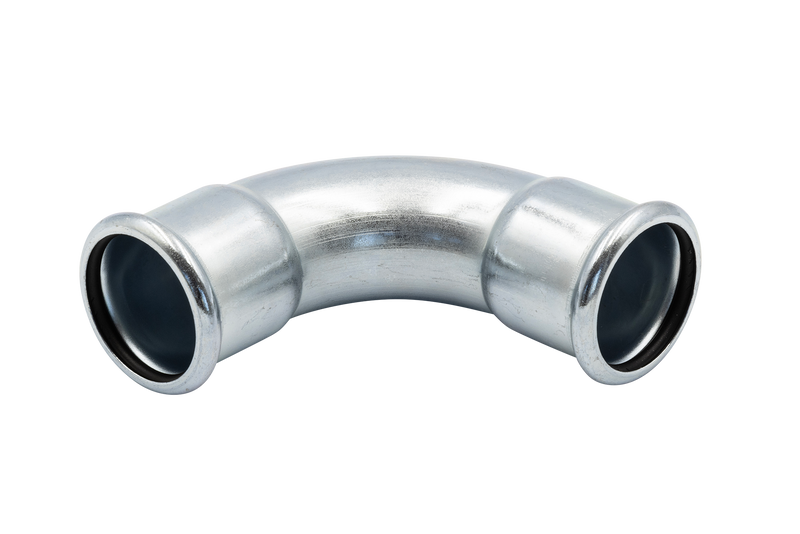

90° Carbon Press Female/Female Bend
Made from high grade unalloyed carbon steel with electrogalvanised (zinc plate) exterior to prevent corrosion, the 90° Male/Female bend meets BS EN 10305-3:2016. EPDM seals/O rings are factory fitted as standard. The bends, as with all Press-Fittings, can be installed within seconds using a press gun,- eradicating the need for soldering and hot work. The maximum pressure for this bend is 16 bar (PN16) with an operating temperature range of -10°C - 110°C (with EPDM seals)
Summary:
- Unalloyed carbon steel
- BS EN 10305-3:2016
- Install in seconds with a press gun
- Operating pressure 16 bar
Applications:
- Non potable water
- Oil
- Compressed air
- Cooling
- Sprinkler system
