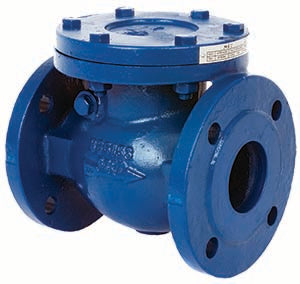

Cast Iron Swing Check Valve PN16 - ART 170This swing check valve is constructed from high quality cast iron with a bronze trim to aid installation. The valve seals against EPDM synthetic rubber gasket for excellent, long lasting durability. The epoxy coating finish further prevents corrosion and provides additional abrasion resistance to the valve. Compatible with high pressure oil and water pipelines, the valve is capable of operating in temperatures ranging from -10°C to +230°C and fits flanges up to PN16.
Summary:
- Flange mounting PN16 Only
- Flange conforms to BS EN1092 PN16
- BS5153 (BS EN 558-1 Series 10)
Specifications:
Body
Cast Iron
Pressure Rating
16 Bar
Temperature
-10°C
Washer
Steel BS970 43A
