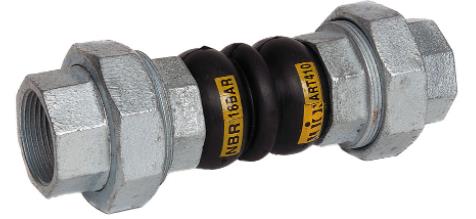

Albion 1-2" BSP Rubber Expansion Bellows ART 400
The Albion 1-2” BSP Rubber Expansion Bellows is manufactured from EPDM rubber, and has a pressure rating of 16 bars. Commonly used with chilled water, drinking water, and lower pressure heating installations, this ART 400 Expansion Bellow absorbs vibrations in equipment to reduce the transmission of noise.
Summary:
- Screwed BSP Taper BS21
- EPDM/NBR Body
- Galvanised Malleable Iron
- Nylon Cord Fabric with Steel Reinforcement
Specifications:
Body
EPDM
Reinforcement
Nylon Cord Wire
Pressure Ring
Steel Wire
Union End
Malleable Iron
Pressure Rating
16 Bars
Working Temperature
-20°C to +100°C
